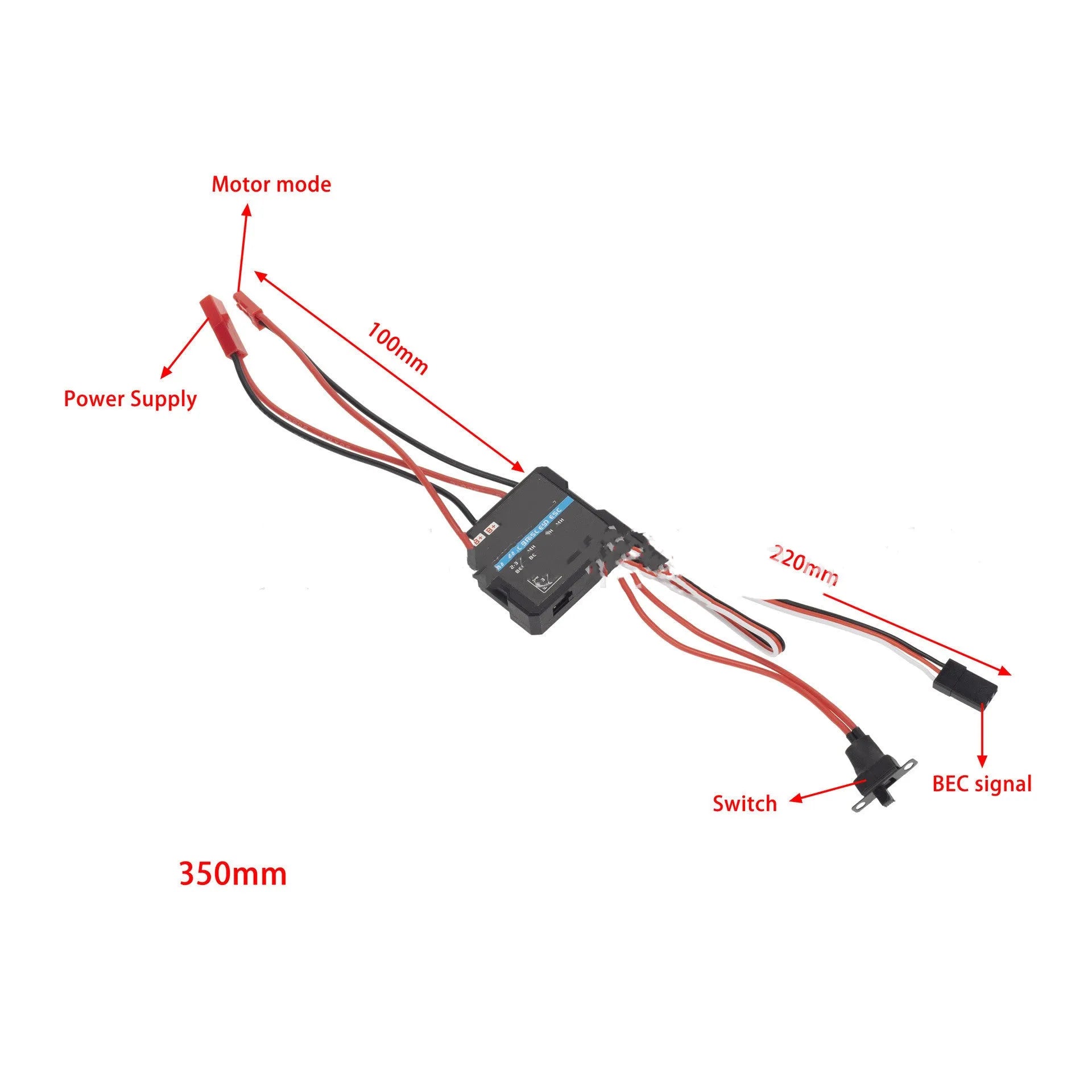

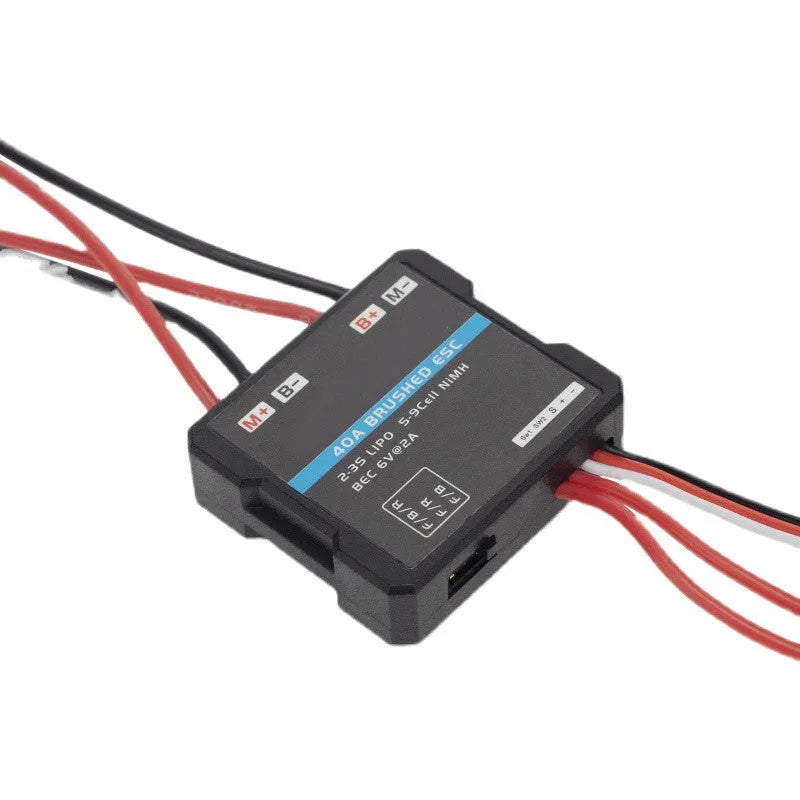

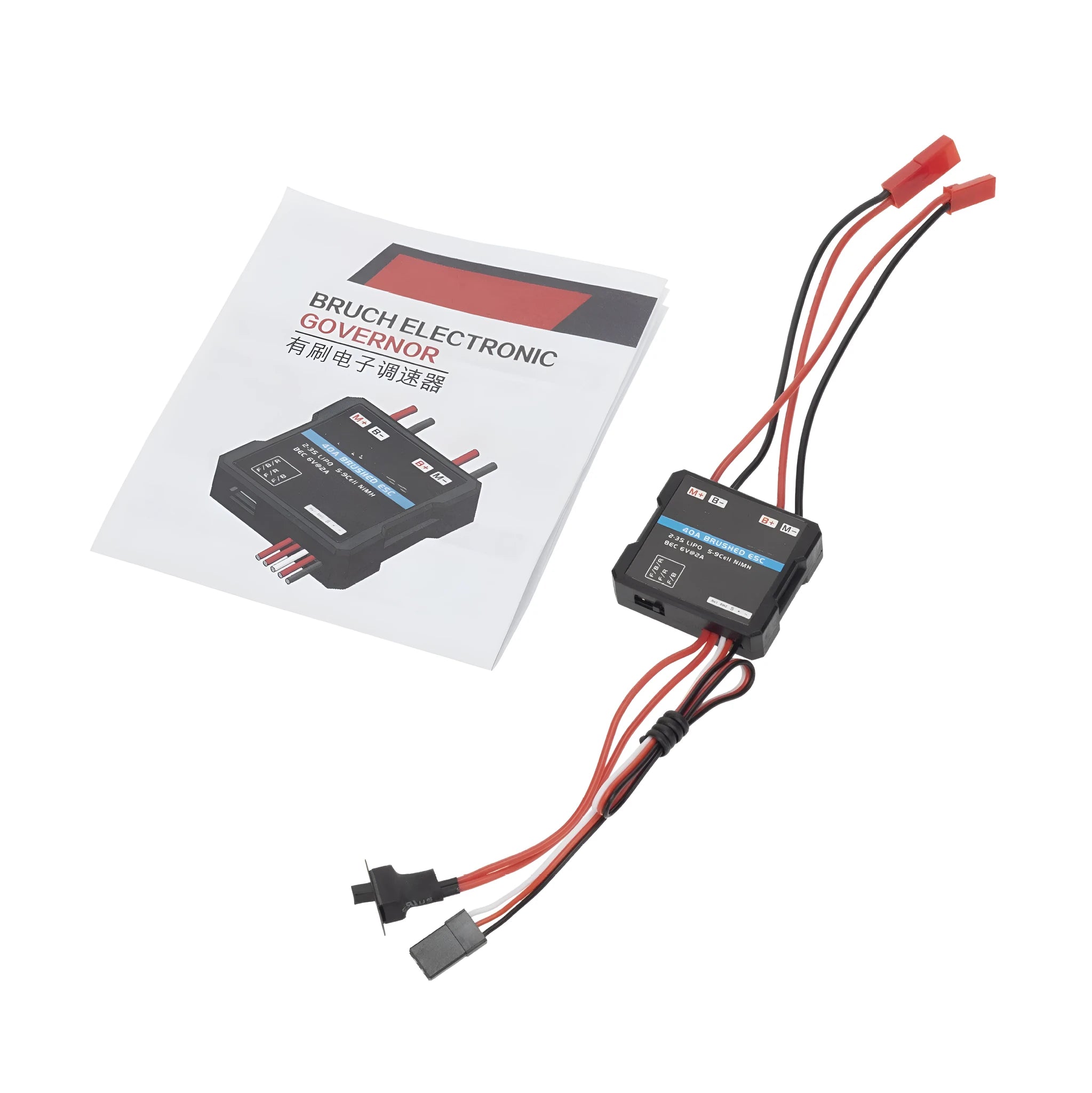

Small Boat 40A Brushed ESC for 1/16th and 1/18th Scale RC Trucks, Tanks, and Scooters

This Small Boat 40A electronic speed controller is built specifically for the compact world of 1/16th and 1/18th scale radio-controlled models. It delivers a substantial 40 amps of continuous forward current, with a peak capability of 160A, providing the robust power delivery needed for small trucks, climbing vehicles, tanks, and scooters to perform reliably. Its design centres on flexibility, offering support for both modern 2S lithium polymer (Lipo) batteries and traditional 5 to 6 cell nickel-metal hydride (NiMH) packs. The inclusion of three user-selectable operation modes—one-way, two-way, and a dedicated climbing mode—makes it a highly adaptable component suited to casual bashing, scale crawling, and competitive driving.

Features and Construction

This speed controller is packed with features aimed at enhancing the performance and configurability of your small-scale RC model. Its construction focuses on delivering stable power management within a compact form factor suitable for limited chassis space.

Power and Compatibility

The ESC's core specification is its 40-amp continuous current rating in the forward direction, paired with a 20-amp continuous current for reverse. This balanced power profile allows for strong acceleration while maintaining controlled braking. It is explicitly compatible with 280, 370, and 380 size brushed motors, provided they operate below 30,000 RPM at 7.2 volts. The supported voltage range covers 2S Lipo batteries and 5 to 6 cell NiMH packs, giving modellers a choice between high-energy-density lithium and more traditional power sources.

Operation Modes and BEC

A key differentiator is the trio of operation modes. The one-way mode is standard for basic forward control. The two-way mode enables full proportional forward and reverse. The specialised climbing mode is tailored for slow-speed, high-torque applications typical in scale crawlers and trail trucks. Furthermore, the integrated Battery Eliminator Circuit (BEC) operates in a switched regulator mode, providing a selectable 3.1V or 6V output to reliably power your model's receiver and servos without needing a separate battery.

Uses and Placement

This controller is engineered for a specific niche within the RC hobby, fitting a range of popular small-scale vehicle types and driving disciplines.

Model Applications

Its primary application is for 1/16th and 1/18th scale electric models. The source text lists explicit compatibility with electric 'houses' (likely a translation for 'buggies' or similar), scooters, Bigfoot-style trucks, trucks, climbing vehicles, and tanks. This makes it a versatile choice for enthusiasts who own multiple vehicle types within this scale, from high-speed bashers to detailed scale crawlers and military replicas.

Driving Style Configuration

The adjustable modes allow the same hardware to suit different driving styles. For racing or general bashing where instant reverse is not required, the one-way mode can be selected. For more technical driving where precise forward and reverse control is needed, the two-way mode is ideal. The climbing mode unlocks the controller's potential for slow, controlled ascents over rough terrain, maximising low-speed torque and control for scale trail running and competition crawling.

Benefits and Buying Value

Choosing this ESC brings practical advantages centred on performance flexibility and broad compatibility within its scale class.

Versatility from a Single Unit

The main benefit is obtaining three functionally distinct speed controllers in one physical unit. Instead of purchasing separate ESCs for a basher, a crawler, and a scale model, this single component can be reconfigured via its mode settings. This reduces the need for multiple specialised parts and simplifies inventory for hobbyists who enjoy different aspects of the RC hobby. The dual battery compatibility further adds to this versatility, allowing you to use existing battery packs regardless of chemistry.

Why Choose This Product

This product stands out for its targeted specification matching the demands of small-scale models. The 40A rating provides ample overhead for the smaller 280-380 size motors, promoting cooler running and longevity. The inclusion of a dedicated climbing mode is a specific feature not found on all basic ESCs, offering immediate utility for the growing scale crawling segment. When your needs include powering 1/16th or 1/18th scale vehicles with the option to switch between high-speed and high-torque driving characteristics, this controller presents a focused and capable solution.
