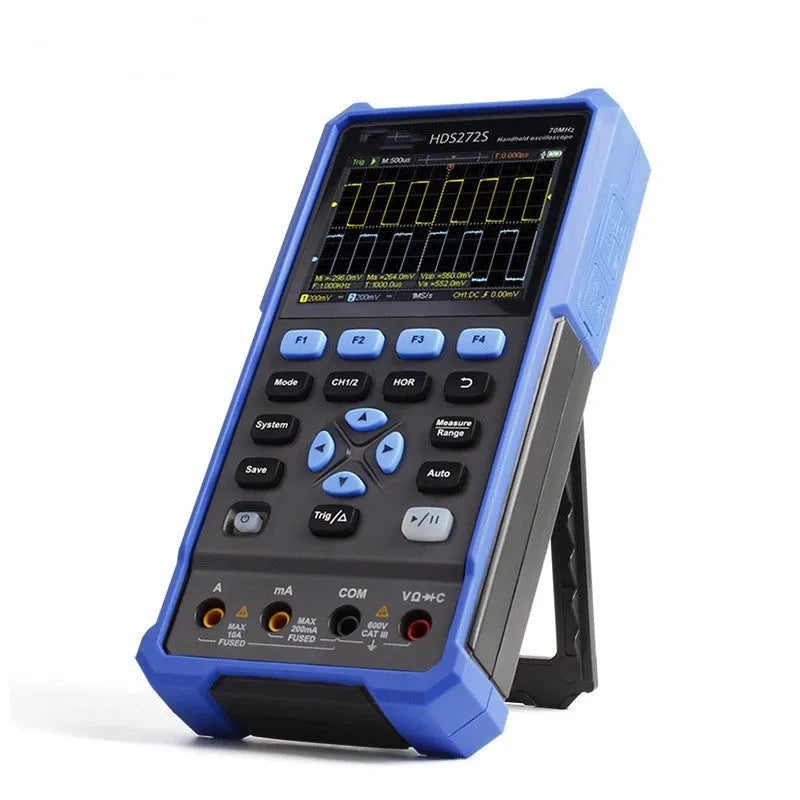

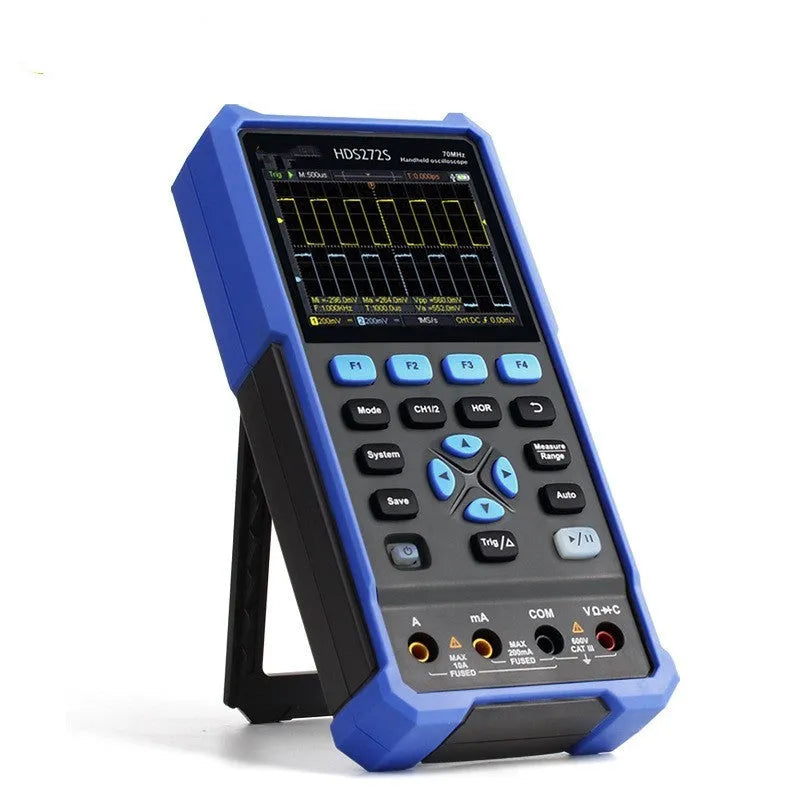

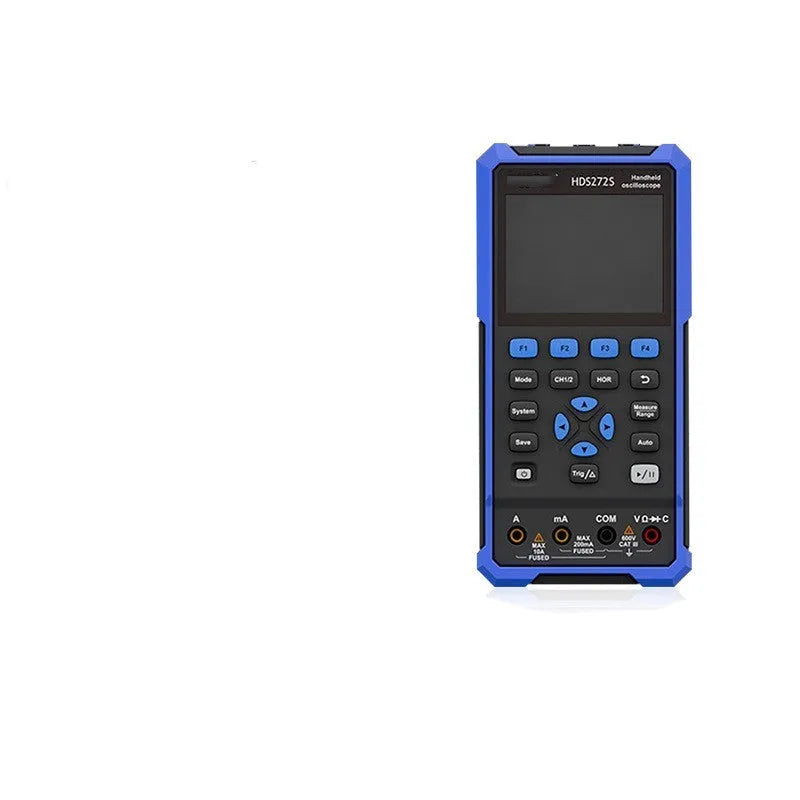

Owon HDS272 70MHz Digital Handheld Oscilloscope for Automotive Repair and Portable Diagnostics

The Owon HDS272 represents a practical solution for technicians requiring waveform analysis capability away from traditional workshop benches. This digital handheld oscilloscope combines essential measurement functions with portability, making it particularly suitable for automotive repair scenarios where diagnosing electronic control units, sensor signals, and communication buses requires on-the-spot testing. With its 70MHz bandwidth and comprehensive accessory kit, it serves as a complete diagnostic tool that can be transported between vehicles or job sites without sacrificing the core functionality needed for effective fault finding in modern electronic systems.

Features and Construction

The HDS272 oscilloscope is engineered for field use while maintaining measurement specifications that support automotive and general electronic diagnostics. Its construction prioritises portability without compromising on the essential parameters needed for meaningful signal analysis in repair environments.

Material and Build

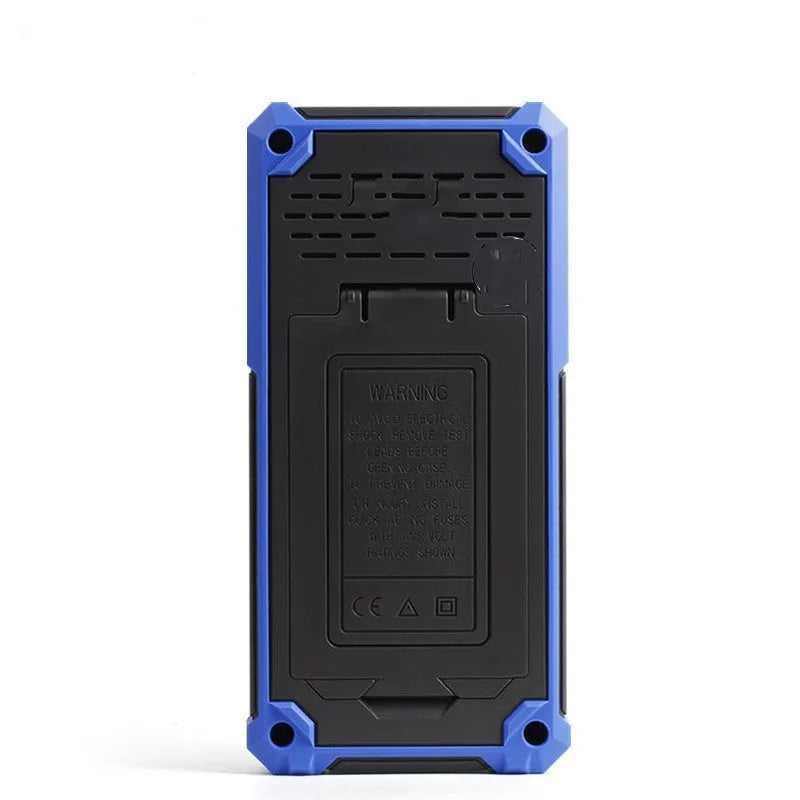

The oscilloscope housing utilises durable plastics designed to withstand the occasional knocks and vibrations encountered in workshop and field service contexts. The unit's 198x38x96mm form factor represents a balance between screen visibility and handheld ergonomics, allowing for comfortable operation during extended diagnostic sessions. Metal components are incorporated at critical connection points including the BNC input and probe interfaces to ensure reliable signal integrity and mechanical durability when connecting and disconnecting test leads repeatedly.

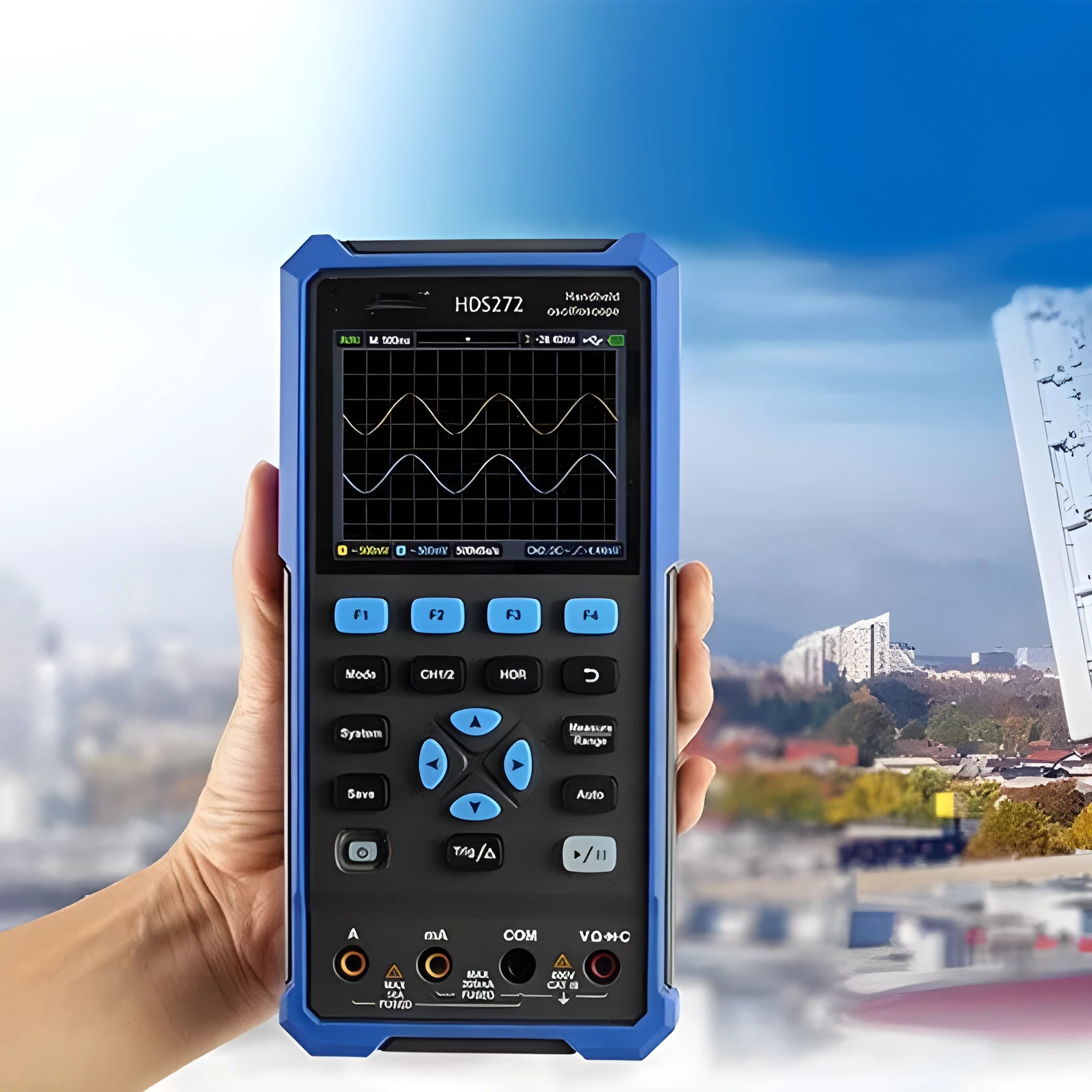

Size and Practical Fit

Measuring 198mm in length, 38mm in depth, and 96mm in height, the oscilloscope maintains a genuinely portable profile that fits within most toolkits or can be carried separately in its protective bag. This compact dimension facilitates use in confined automotive spaces such as under dashboards or near engine compartments where bench oscilloscopes would be impractical. The included protective portable bag provides a dedicated storage solution that protects the device during transit between jobs while keeping all essential accessories organised together.

Uses and Placement

This handheld oscilloscope addresses specific measurement scenarios where portability and complete toolkit readiness provide distinct advantages over traditional bench-mounted alternatives.

Event or Professional Use

In automotive repair contexts, the HDS272 enables technicians to diagnose CAN bus signals, sensor outputs, ignition patterns, and power supply irregularities directly at the vehicle without needing to remove components for bench testing. The 70MHz bandwidth supports analysis of most automotive communication protocols and sensor frequencies encountered in modern vehicles. The 10000 waveforms per second capture rate proves particularly valuable for identifying intermittent faults that might not appear during static testing, while the 250MSa/s sampling rate ensures adequate resolution for detailed waveform examination.

Everyday Home Use

For electronics hobbyists and makers, this portable oscilloscope offers a convenient measurement tool that doesn't require dedicated bench space. The complete accessory set including probe pen, multimeter pen, and various adapters supports a wide range of projects from Arduino signal debugging to amplifier testing. The USB connectivity facilitates firmware updates and potential data transfer, while the protective carrying case makes the system easy to store securely between uses without worrying about misplacing essential components.

Benefits and Buying Value

The HDS272 oscilloscope delivers practical advantages through its integrated approach to portable measurement, reducing the equipment barrier for technicians who previously might have compromised on diagnostics due to equipment accessibility.

Reuse and Low Maintenance

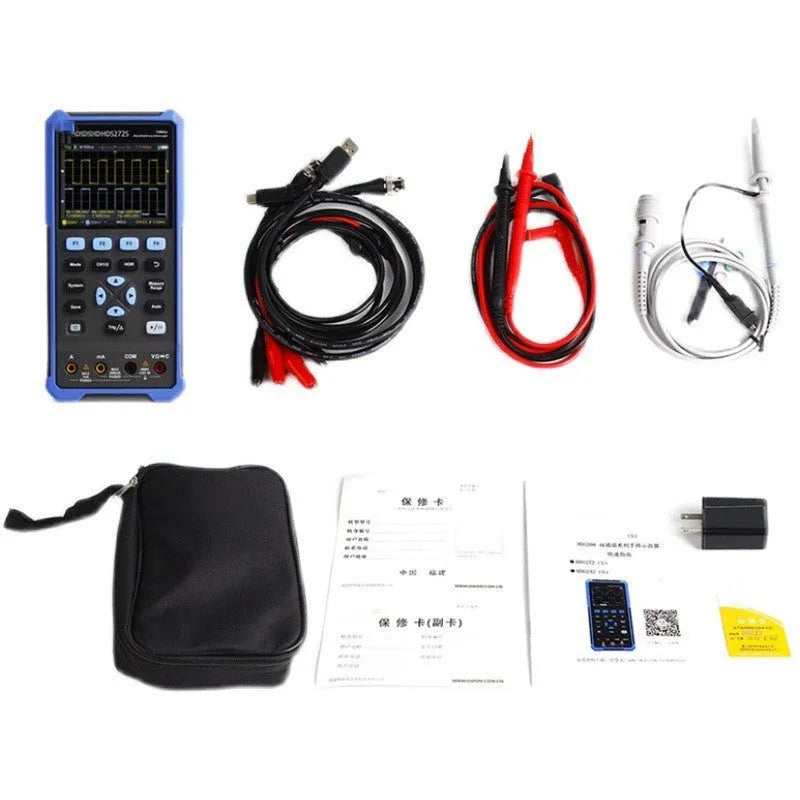

As a complete kit containing all necessary accessories for immediate operation, this oscilloscope eliminates the need to source separate probes, adapters, or carrying solutions. The protective bag ensures organised storage that minimises the risk of lost components, while the inclusion of both oscilloscope and multimeter probes extends the device's utility across voltage, continuity, and waveform measurement applications. The design focuses on straightforward operation without excessive complexity that might require specialised training or frequent calibration.

Why Choose This Product

Technicians selecting the HDS272 gain a balanced combination of portability and sufficient specification for the majority of automotive and general electronic diagnostic scenarios. The 70MHz bandwidth represents a practical threshold for most sensor and communication bus analysis, while the 250MSa/s sampling rate provides adequate detail for identifying waveform anomalies. Rather than opting for either a limited pocket oscilloscope or a cumbersome bench model, this device occupies a middle ground that offers genuine workshop capability in a genuinely portable format, complemented by a comprehensive accessory set that ensures readiness for various testing situations.
