35mm Adjustable Hinge Punch Locator for Precise Cabinet and Wardrobe Installation

This hinge punch locator is a dedicated woodworking tool designed to solve the common problem of misaligned hinge installation on cabinet doors and wardrobe frames. It provides a reliable method for accurately marking screw hole positions for 35mm extended arm and middle bend hinges, which are standard fittings in many home cabinet and furniture projects. By offering four adjustable margin settings, it allows for consistent positioning tailored to specific hinge requirements, reducing measurement errors and improving the overall fit and finish of doors. Its construction from practical materials makes it a straightforward tool for DIY enthusiasts and household use where precise joinery is needed.

Features and Construction

The tool's design centres on providing accurate, repeatable markings for hinge placement. Its key components are built from materials selected for their practical application in woodworking marking tasks.

Material and Build

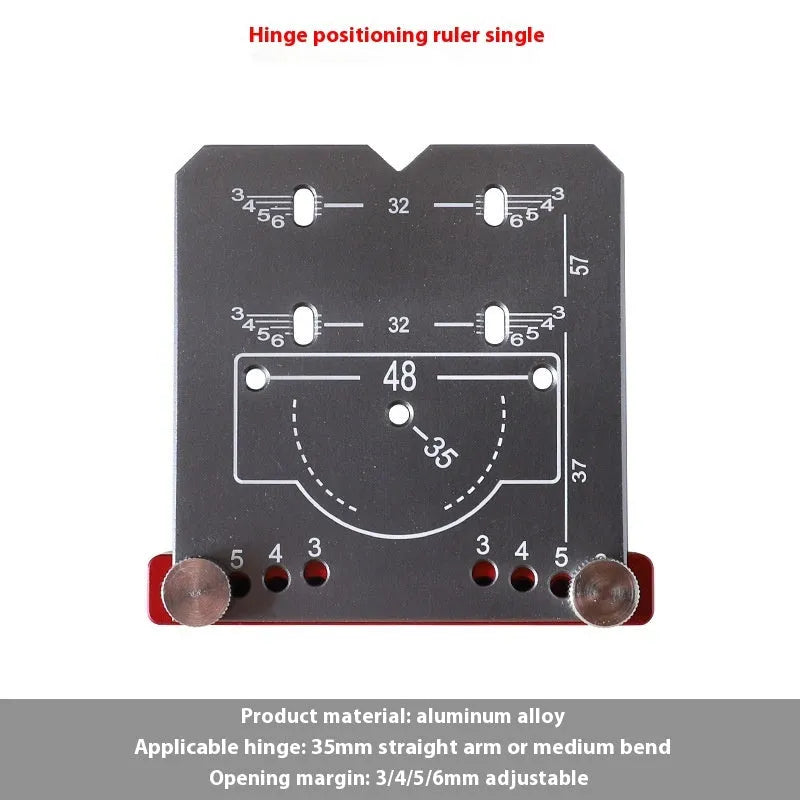

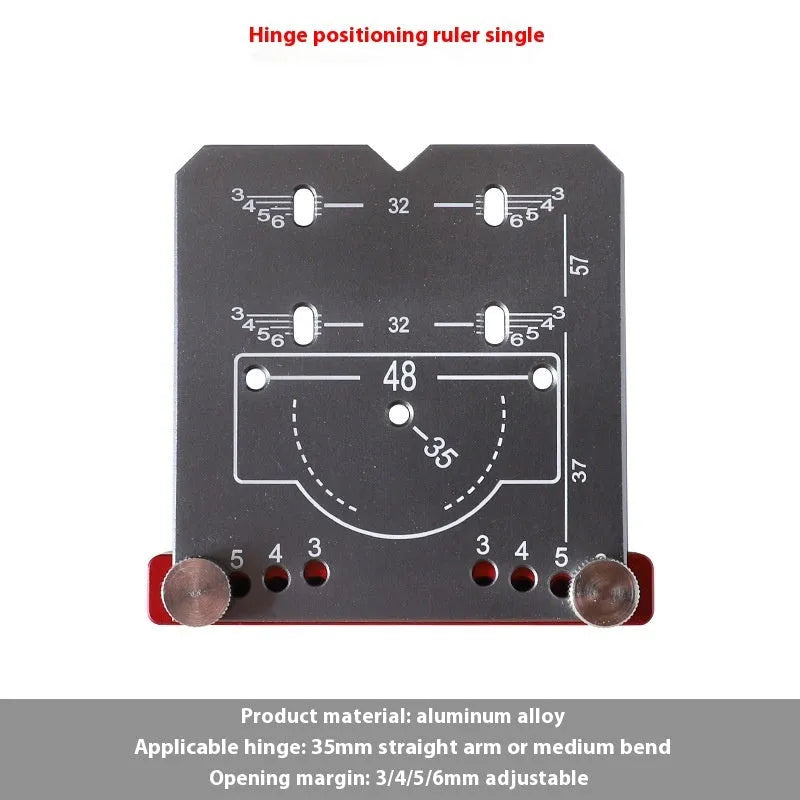

The primary component is the hinge opening locating rule, fabricated from aluminium alloy. This material choice provides a rigid structure for accurate alignment against cabinet door edges without excessive flex. The separate limit tapper component incorporates a blade made from hard alloy. According to the source text, this blade has undergone a high-temperature heat treatment process, which increases its hardness. This results in a sharp cutting edge intended to maintain its marking ability and resist wear from repeated use on wood surfaces during DIY projects.

Size and Practical Fit

The tool is specifically configured for use with 35mm extended arm and middle bend hinges, which are common in home cabinet door and wardrobe installations. Its core function is to set the correct margin—the distance from the door edge to the hinge mounting holes. It offers four pre-set margin options: 3mm, 4mm, 5mm, and 6mm. This adjustability allows users to select the appropriate setting for their specific hinge type or installation preference, providing a wider application range than a fixed-distance tool. The design facilitates accurate positioning and simple operation for the user.

Uses and Placement

This locator addresses a specific task in furniture assembly and DIY woodworking, focusing on hinge installation which is critical for proper door function.

Event or Professional Use

While primarily intended for household and DIY use, the tool's precise adjustable margins and durable blade could support consistent hinge installation in settings like small-scale cabinet making, furniture repair workshops, or property maintenance tasks where multiple identical fittings are required. The ability to quickly set a repeatable 3mm, 4mm, 5mm, or 6mm margin helps maintain uniformity across multiple doors or units, which is valuable in any scenario demanding consistency.

Everyday Home Use

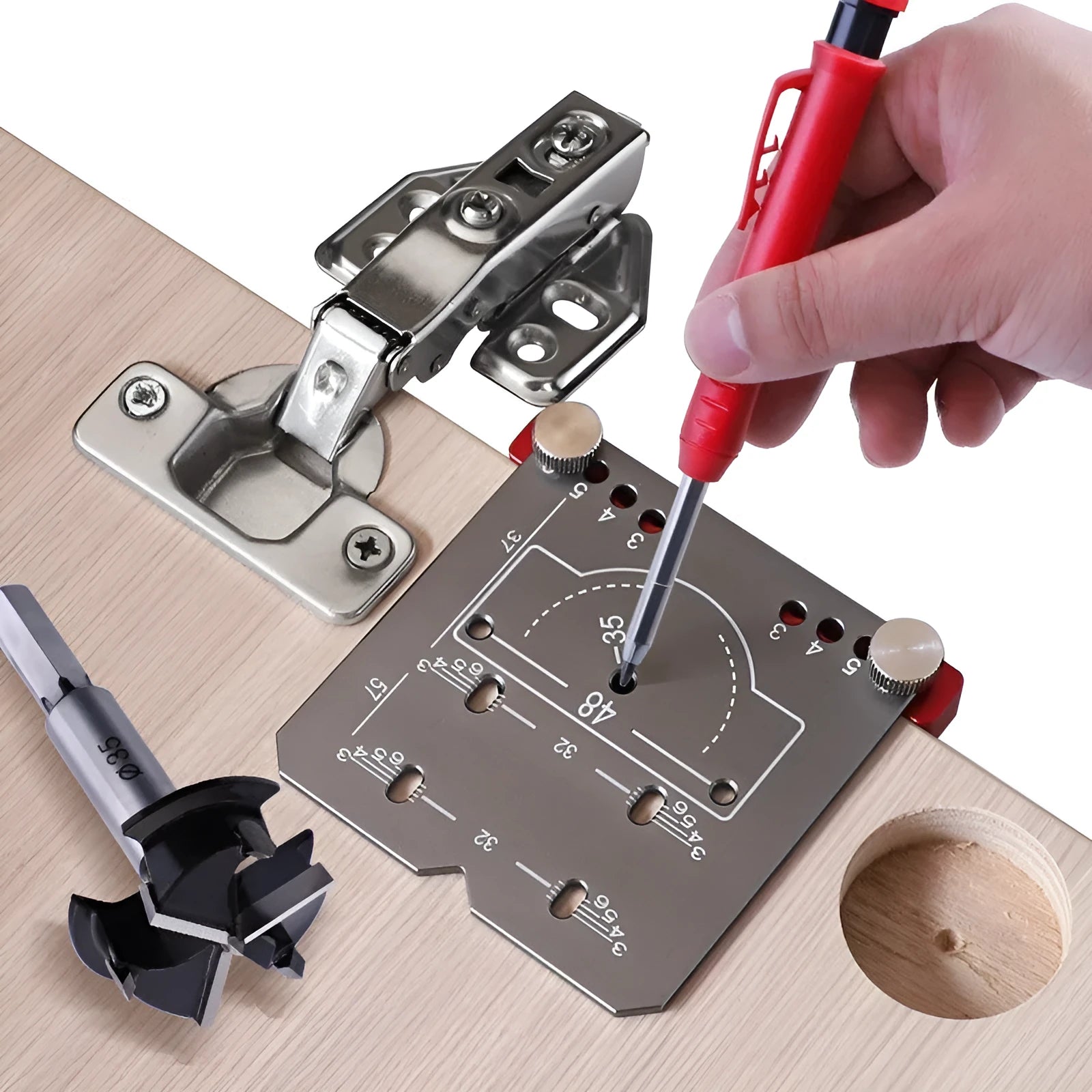

For the home DIY enthusiast, this tool simplifies installing or replacing hinges on kitchen cabinets, bedroom wardrobes, bathroom vanity units, and other built-in furniture. It removes the guesswork from measuring and marking screw holes, reducing the risk of doors hanging crookedly or binding. The straightforward operation—setting the margin, aligning the rule, and tapping with the blade—makes it accessible for users without specialist woodworking skills, aiding in common home improvement and furniture assembly projects.

Benefits and Buying Value

The value of this tool lies in its focused design for a single, often troublesome task, using materials chosen for that specific purpose.

Reuse and Low Maintenance

The aluminium alloy construction of the main rule offers inherent resistance to corrosion and deformation under normal use. The heat-treated hard alloy blade is described as wear-resistant, suggesting it should retain its sharpness for multiple marking tasks on wood. This combination supports reuse over many projects. Maintenance is minimal; keeping the blade clean and the rule free of debris is typically sufficient to ensure ongoing accuracy.

Why Choose This Product

This hinge punch locator offers a practical alternative to manual measuring and marking for 35mm hinges, which can be prone to error. Its key differentiators are the four adjustable margin settings (3-6mm) and the dedicated hard alloy blade. It provides a single-purpose tool that can improve accuracy and speed for a specific but common DIY job, potentially preventing the frustration and material waste of mis-drilled holes. It is a solution for those seeking a dedicated aid for cabinet and wardrobe hinge installation.
